How to Install a Heat Shrinkable Cable Jointing Kit Step by Step

Installing a heat shrinkable cable jointing kit is a critical task in ensuring safe, reliable, and long-lasting electrical connections. Whether you’re working on low-voltage or medium-voltage cables, proper installation plays a major role in preventing faults, insulation failures, and costly downtime.

While the process may seem technical at first, following a structured step-by-step approach can make it manageable and efficient. In this guide, you’ll learn how to install a this jointing kit correctly, along with essential tips to ensure optimal performance.

What Is a Heat Shrinkable Cable Jointing Kit?

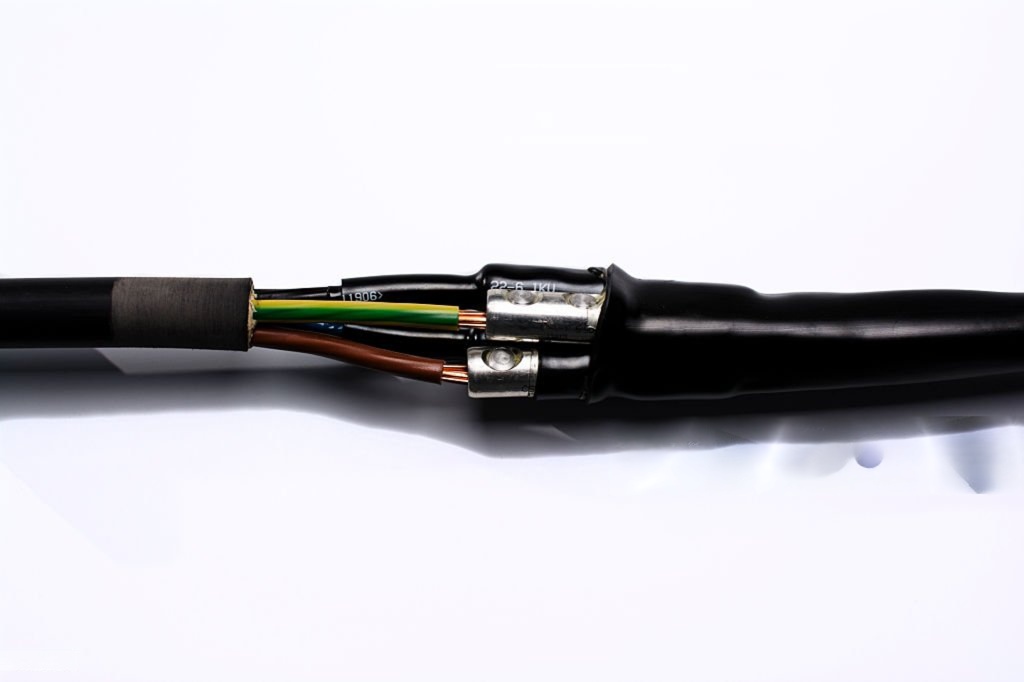

Before diving into the installation, it’s important to understand what a heat shrinkable cable jointing kit does. It is designed to join two cables while restoring insulation, mechanical strength, and environmental protection. The kit typically includes heat shrink tubes, insulating materials, sealants, and connectors.

When heat is applied, the tubing shrinks tightly over the cable joint, creating a secure and sealed connection that protects against moisture, dust, and external damage.

Tools and Materials You’ll Need

To install this cable jointing kit, gather the following tools:

• Cable cutter
• Insulation stripper
• Crimping tool
• Propane torch or heat gun
• Cleaning materials (cloth, solvent)
• Protective gloves and safety gear

Having everything ready before starting ensures a smooth and uninterrupted process.

Step 1: Prepare the Cable Ends

Start by cutting the damaged or required cable ends cleanly. Use a cable cutter to ensure a straight and even cut. Then, strip the outer insulation carefully to expose the conductors. Make sure not to damage the inner layers during stripping. Proper preparation of cable ends is essential for a secure joint when using a heat shrinkable jointing kit.

Step 2: Clean the Cable Surface

Once the cable is stripped, clean the exposed area thoroughly. Remove dirt, grease, or moisture using a clean cloth and suitable solvent. A clean surface allows the components to adhere properly and ensures better insulation and sealing.

Step 3: Slide the Heat Shrink Components

Before making the connection, slide the heat shrink tubes and other components onto the cable. This step is often overlooked, but it’s crucial because you won’t be able to add them after the conductors are joined.

Ensure the components are placed in the correct sequence as specified in the instructions.

Step 4: Join the Conductors

Align the conductors from both cable ends and connect them using the provided connector or ferrule. Use a crimping tool to secure the connection firmly. A strong mechanical and electrical connection is vital for the effectiveness of the heat shrinkable cable jointing kit. Loose connections can lead to overheating and failure.

Step 5: Apply Insulation Layers

After joining the conductors, apply the insulating materials included in the kit. This may involve wrapping insulation tapes or positioning inner tubes over the joint.

These layers help restore the cable’s original insulation properties and prepare it for the final sealing process using the cable jointing kit.

Step 6: Heat the Shrink Tubing

Now comes the key step, applying heat. Use a propane torch or heat gun to evenly heat the shrink tubing. Start from one end and move gradually to the other.

As the tubing shrinks, it will tightly conform to the shape of the joint, creating a secure seal. Ensure uniform heating to avoid air pockets or uneven shrinkage in the jointing kit.

Step 7: Seal and Inspect the Joint

Once the tubing has fully shrunk, allow it to cool down naturally. Check the joint for any gaps, bubbles, or irregularities.

A properly installed cable jointing kit should have a smooth, tight finish with no visible defects. This ensures maximum protection and durability.

Common Mistakes to Avoid

Even with the right steps, certain mistakes can compromise the installation:

• Skipping cable cleaning
• Overheating or underheating the tubing
• Incorrect placement of components
• Poor crimping of connectors

Avoiding these errors will significantly improve the performance of your heat shrinkable cable jointing kit.

Safety Tips to Keep in Mind

Working with electrical cables and heat tools requires caution. Always:

• Wear protective gloves and gear
• Ensure the power supply is turned off
• Use heat tools carefully to prevent burns
• Work in a well-ventilated area

Safety should always be your top priority during installation.

Why Proper Installation Matters

A correctly installed jointing kit does more than just connect cables. It enhances reliability, prevents electrical faults, and extends the lifespan of the cable system. Improper installation, on the other hand, can lead to failures, safety hazards, and increased maintenance costs.

Conclusion

Installing a heat shrinkable cable jointing kit may seem complex, but with the right approach, it becomes a straightforward process. By carefully preparing the cables, following each step, and paying attention to detail, you can achieve a strong and durable connection. Whether you’re a professional electrician or someone learning the process, mastering this installation technique is a valuable skill. With practice and adherence to best practices, you can ensure safe and efficient cable jointing every time.
